MAIN STOPCOCK

Ideal valves for the main water input of homes. They fulfill both the function of cutting, and preventing the reverse flow. Therefore, they can be thought of as the combination of a ball valve and a check valve. They have a robust brass body, ideal for those areas of unfavorable conditions, such as subzero temperatures, where water freezes and can break the valves.

WITH POLYETHYLENE HOSE BARBS

With polyethylene hose barb connections on both ends, ideal for LDPE (low density polyethylene) pipes.

Code Size Inlet (hose barb) Outlet (hose barb)
105 1/2" 1/2" pipe 1/2" pipe
110 3/4" 3/4" pipe 3/4" pipe
115 1" 1" pipe 1" pipe

WITH BRASS HOSE BARBS

With brass hose barb connections on both ends, ideal for LDPE (low density polyethylene) pipes.

Code Size Inlet (hose barb) Outlet (hose barb)
135 1/2" 1/2” pipe 1/2” pipe
1
140 3/4" 3/4” pipe 3/4” pipe
145 1" 1" Pipe 1" Pipe
150 1 1/4" 1 1/4" pipe 1 1/4" pipe
155 1 1/2" 1 1/2” pipe 1 1/2” pipe
160 2" 2" pipe 2" pipe

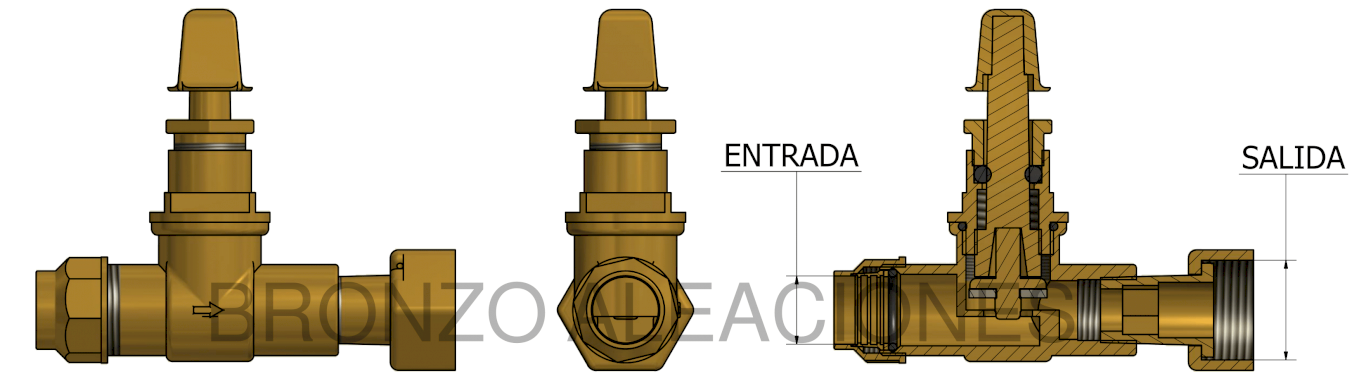

WITH HOSE BARB AND FREE NUT

With polyethylene hose barb connection at the inlet, ideal for LDPE (low density polyethylene) pipes, and free nut at the outlet.

Code Size Inlet (hose barb) Outlet (free nut)
120 1/2" Polyethylene barb for 1/2" hose 3/4"
125 1/2" Polyethylene barb for 1/2" hose 1"
165 1/2" Brass barb for 1/2" hose 3/4"
170 1/2" Brass barb for 1/2" hose 1"
126 3/4" Polyethylene barb for 3/4" hose 1"
171 3/4" Brass barb for 3/4" hose 1"

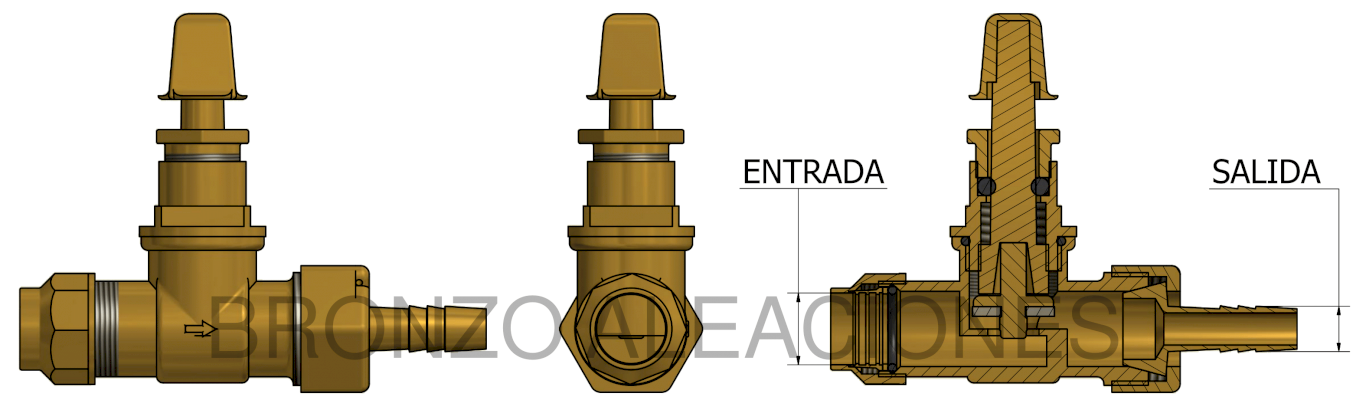

WITH COMPRESSION COUPLER AND HOSE BARB

With compression coupler at the inlet, ideal for HDPE (High-density polyethylene) pipes, and brass hose barb at the outlet.

Code Size Inlet (Compression coupler) Outlet (Hose barb)
180 1/2" 20 mm pipe 1/2” hose

WITH COMPRESSION COUPLER AND FREE NUT

With compression coupler at the inlet, ideal for HDPE (High-density polyethylene) pipes, and free nut at the outlet.

Code Size Inlet (Compression coupler) Outlet (Free nut)
121 1/2" 20 mm pipe BSP 3/4"

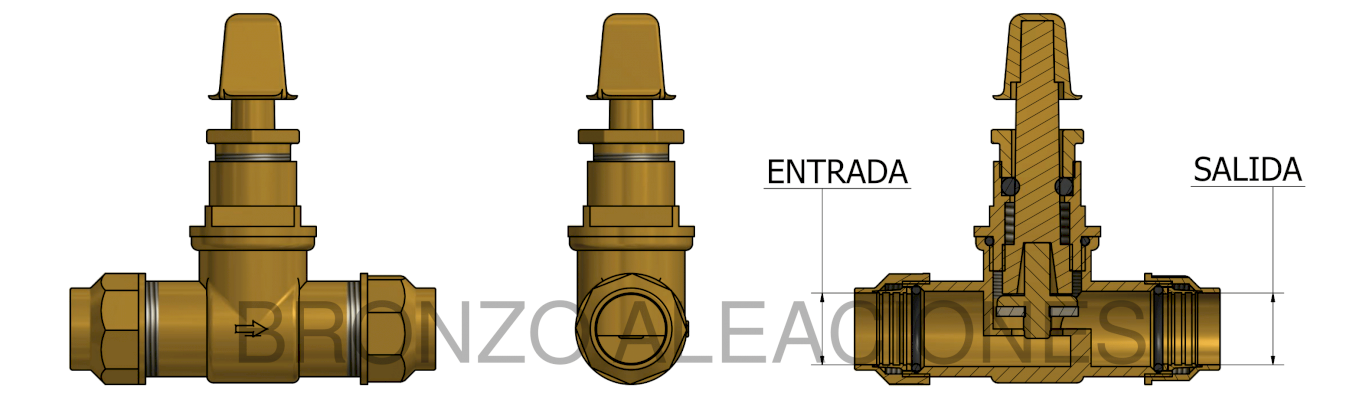

WITH COMPRESSION COUPLERS ON BOTH SIDES

With compression couplers at inlet and outlet, ideal for HDPE (High-density polyethylene) pipes.

Code Size Inlet (Compression coupler) Outlet (Compression coupler)
161 1/2" 20 mm pipe 20 mm pipe

CON CONEXIÓN HIDRO-BRONZ

Con conexiónes para caños de hidro-bronz a la entrada y salida.

Code Medida Entrada (Tubo cónico) Salida (Tubo cónico)
102 1/2" Caño hidro-bronz de 9 mm Caño hidro-bronz de 9 mm
113 3/4" Caño hidro-bronz de 13 mm Caño hidro-bronz de 13 mm

FOR LEAD CONNECTIONS

With connections for lead pipes at inlet and outlet.

Code Medida Entrada (Tubo conico) Salida (Tubo conico)
104 1/2" Caño plomo de 1/2" Caño plomo de 1/2"

WITHOUT CONNECTIONS

No connections from both sides, to add the combination that each user needs in their particular application. The connections available to place can be found in "accessories for connections" section.

Code Size Inlet Outlet
101 1/2" ----- -----
112 3/4" ----- -----

CABEZALES

Cabezal completo para llave maestra, para cambiarlo de manera rapida y asegurar su funcionamiento.

Code Main Stopcock Size
2390 1/2"
2395 3/4”
2400 1”
2405 1 1/4”
2410 1 1/2”
2415 2"

VALVE PISTON

Valve piston with silicon for main stopcock.

Code Main Stopcock Size
2420 1/2"
2425 3/4"
2430 1”
2435 1 1/4”
2440 1 1/2”
2445
